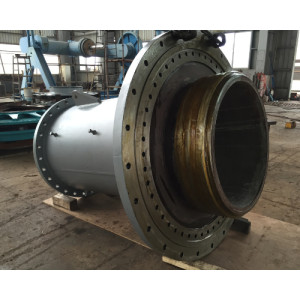

Swivel Bends

The standard dredge swivel bend is fitted with a large bearing between the bends. To take on the forces exerted by the floating pipeline, a pivot with a self-lubricating bush is fitted on the lower bend. This pivot prevents any torque from reaching the swivel.

The welded steel foundation distributes the load from the floating pipeline to the hull of the dredge. The swivel bend is fitted with a replaceable rubber seal, which runs on a stainless steel contact surface.

The rugged design of the swivel bend and the large radius of the pipe bends keep maintenance to a minimum.

Material Types

  • Cast Steel Bends
  • Fabricated Steel Bends
  • Each option comes in various thicknesses to meet specific operational needs.


Included Components

  • Each delivery includes the bearing for the lower bend.

Optional Features

  • Swivel bends can be supplied with an optional surrounding platform.
  • Customization is available to align the height of the discharge pipe with the main deck.
